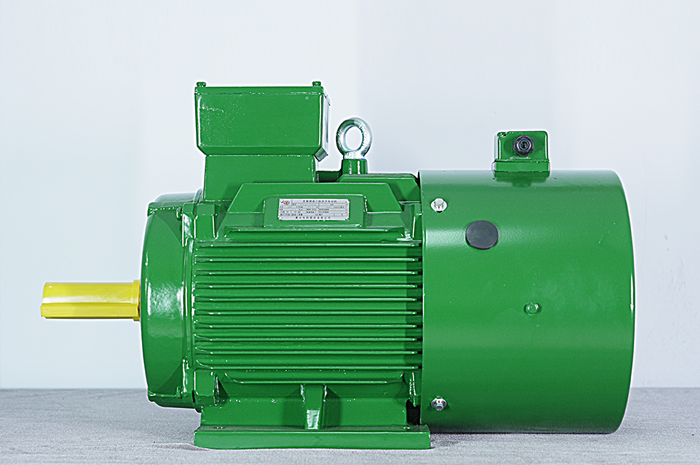

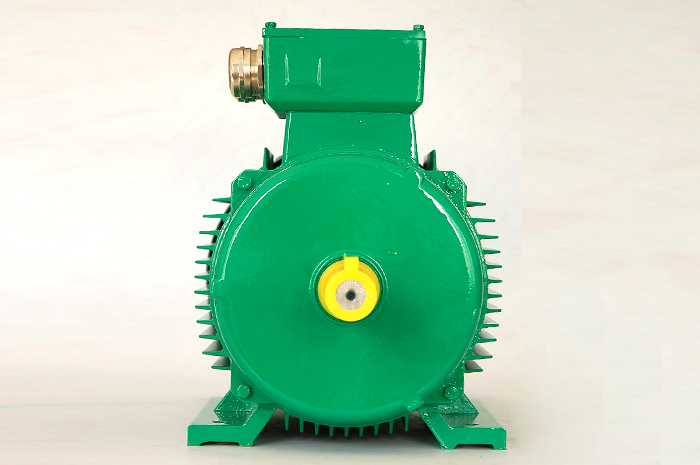

YVFE2系列变频调速三相异步电动机
YVFE2 SERIES VARIABLE FREQUENCY THREE-PHASE ASYNCHRONOUS MOTORS
YVFE2系列变频调速三相异步电动机是以变频器为供电电源的变频调速三相异步电动机。通过改变电源频率实现平滑地调节电动机的转速，达到节能和控制自动化的目的。

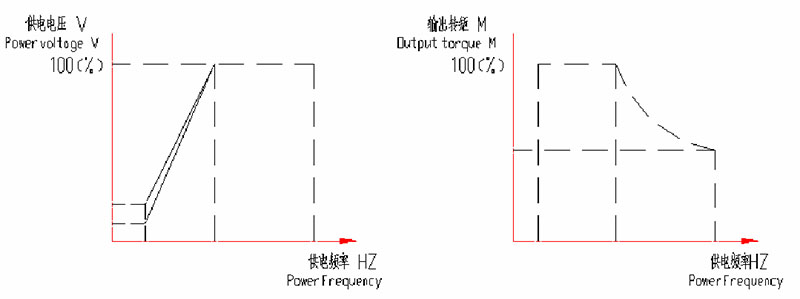

YVFE2系列电动机效率高，调速范围广，精度高，运行稳定，操作和维修方便，其安装尺寸符合国际电工委员会（IEC)标准，外壳防护等级为IP55;电动机有外扇冷风机；电动机的定额是以连续工作制（S1)为基准的连续定额；电动机的额定电压为380V;F级绝缘额定频率为50Hz;电动机在3Hz-50Hz频率范围内，能保证恒转矩运行，恒功率运行（对2极电动机50Hz-60Hz,对355-4以外的4极-6极电动机50Hz-100Hz,对355-4电动机50Hz-75Hz)保证恒功率运行。
YVFE2系列电动机适用于驱动轧钢、起重、运输、机床、印染、造纸、化工、纺织、制药等要求连续和频繁正反转的各种机械设备上，可与国内外各种变频电源配套使用。

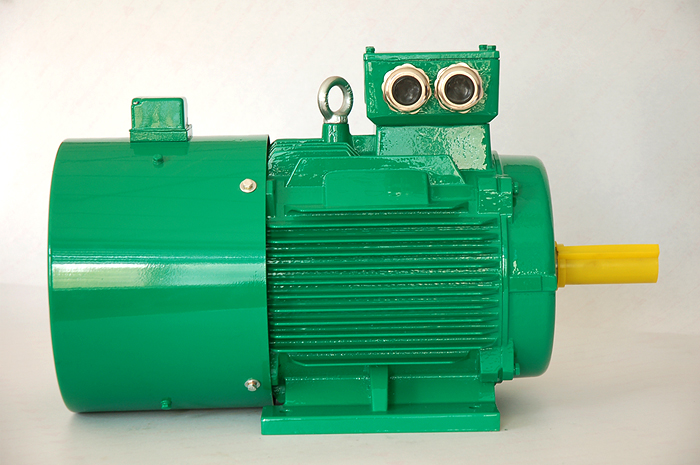

YVF2系列变频调速三相异步电动机 | |||||||||||
| YVF2 SERIES VARIABLE FREQUENCY THREE-PHASE ASYNCHRONOUS MOTORS | |||||||||||
 | |||||||||||

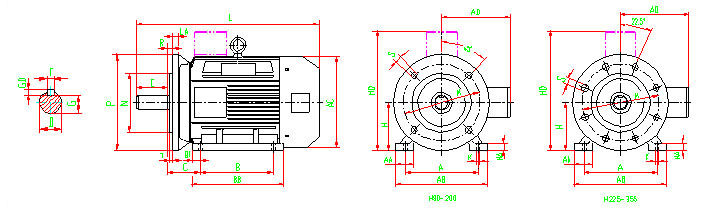

| 机座号 | 80 | 90S | 90L | 100L | 112M | 132S | 132M | 160M | 160L | 180M | 180L |
| L | 295 | 380 | 410 | 465 | 480 | 530 | 570 | 660 | 715 | 775 | 815 |
| 机座号 | 200L | 225S | 225M | 250M | 280S | 280M | 315S | 315L | 315M | 355M | 355L |
| L | 850 | 885 | 915 | 980 | 1085 | 1135 | 1285 | 1395 | 1395 | 1577 | 1577 |
| 注：随着技术的进步和有关标准的修改，样本内技术数据及尺寸有所变动，恕不另行通知。 | |||||||||||
运行特性
YVF2系列变频调速三相异步电动机技术数据 | ||||||||
| YVF2 SERIES VARIABLE FREQUENCY THREE-PHASE ASYNCHRONOUS MOTORS TECHNICAL SPECIFICATIONS | ||||||||
| 型号 | 额定功率 | 额定电流 | 额定输出转矩 | 转速 | 堵转转矩 | 最大转矩 | 转动惯量 | 重量 |
| (千瓦) | (安培) | （N.m） | （转/分） | 额定转矩 | 额定转矩 | （kg.㎡） | （千克） | |
| Type | Rated Output | Rated Current | Rated output Torque | Speed | Locked Torque | Max Torque | Moment of inertia | Weight |
| (KW) | (A) | （N.m） | （r/min） | Rated Torque | Rated Torque | （kg.㎡） | （Kg） | |
| YVF2-80M1-2 | 0.75 | 1.90 | 2.4 | 2840 | 2.2 | 2.8 | 0.0007 | 17 |
| YVF2-80M2-2 | 1.1 | 2.68 | 3.5 | 2840 | 2.2 | 2.8 | 0.0009 | 19 |
| YVF2-90S-2 | 1.5 | 3.51 | 4.8 | 2840 | 2.2 | 2.8 | 0.0013 | 22 |
| YVF2-90L-2 | 2.2 | 4.93 | 7 | 2840 | 2.2 | 2.8 | 0.0016 | 26 |
| YVF2-100L-2 | 3 | 6.43 | 9.5 | 2860 | 2.2 | 2.8 | 0.0029 | 34 |
| YVF2-112M-2 | 4 | 8.31 | 12.7 | 2880 | 2.2 | 2.8 | 0.0058 | 42 |
| YVF2-132S1-2 | 5.5 | 11.2 | 17.5 | 2900 | 2.2 | 2.8 | 0.0109 | 60 |
| YVF2-132S2-2 | 7.5 | 14.9 | 23.9 | 2900 | 2.2 | 2.8 | 0.0131 | 67 |
| YVF2-160M1-2 | 11 | 21.4 | 35 | 2930 | 2.2 | 2.8 | 0.0392 | 102 |
| YVF2-160M2-2 | 15 | 28.9 | 47.7 | 2930 | 2.2 | 2.8 | 0.0461 | 112 |
| YVF2-160L-2 | 18.5 | 35.4 | 58.9 | 2930 | 2.2 | 2.8 | 0.0603 | 143 |
| YVF2-180M-2 | 22 | 41.8 | 70 | 2940 | 2.2 | 2.8 | 0.0719 | 165 |
| YVF2-200L1-2 | 30 | 56.5 | 95.5 | 2950 | 2.2 | 2.8 | 0.1254 | 225 |
| YVF2-200L2-2 | 37 | 69.3 | 117.8 | 2950 | 2.2 | 2.8 | 0.1429 | 242 |
| YVF2-225M-2 | 45 | 83.8 | 143.2 | 2960 | 2.2 | 2.8 | 0.2339 | 298 |
| YVF2-250M-2 | 55 | 102 | 175.1 | 2965 | 2.2 | 2.8 | 0.3608 | 385 |
| YVF2-280S-2 | 75 | 138 | 238.7 | 2970 | 1.7 | 2.8 | 0.5837 | 546 |
| YVF2-280M-2 | 90 | 165 | 286.5 | 2970 | 1.7 | 2.8 | 0.7176 | 567 |
| YVF2-315S-2 | 110 | 199 | 350.1 | 2975 | 1.7 | 2.8 | 1.3254 | 855 |
| YVF2-315M-2 | 132 | 238 | 420.2 | 2975 | 1.7 | 2.8 | 1.5185 | 955 |
| YVF2-315L1-2 | 160 | 285 | 509.3 | 2975 | 1.7 | 2.8 | 1.7977 | 1080 |
| YVF2-315L2-2 | 200 | 355 | 636.6 | 2975 | 1.7 | 2.8 | 2.1701 | 1230 |
| YVF2-355M-2 | 250 | 444 | 795.8 | 2980 | 1.7 | 2.8 | 3.2282 | 1650 |
| YVF2-355L-2 | 315 | 560 | 1002.7 | 2980 | 1.7 | 2.8 | 3.7211 | 1870 |
| YVF2-80M1-4 | 0.55 | 1.61 | 3.5 | 1390 | 2.0 | 2.8 | 0.0018 | 17 |
| YVF2-80M2-4 | 0.75 | 2.08 | 4.8 | 1390 | 2.0 | 2.8 | 0.0021 | 18 |
| YVF2-90S-4 | 1.1 | 2.89 | 7 | 1390 | 2.0 | 2.8 | 0.0021 | 22 |
| YVF2-90L-4 | 1.5 | 3.78 | 9.5 | 1390 | 2.0 | 2.8 | 0.0027 | 25 |
| YVF2-100L1-4 | 2.2 | 5.24 | 14 | 1410 | 2.0 | 2.8 | 0.0054 | 34 |
| YVF2-100L2-4 | 3 | 6.90 | 19.1 | 1410 | 2.0 | 2.8 | 0.0067 | 37 |
| YVF2-112M-4 | 4 | 9.03 | 25.5 | 1435 | 2.0 | 2.8 | 0.0095 | 46 |
| YVF2-132S-4 | 5.5 | 12.0 | 35 | 1440 | 2.0 | 2.8 | 0.0214 | 62 |
| YVF2-132M-4 | 7.5 | 16.0 | 47.7 | 1440 | 2.0 | 2.8 | 0.0296 | 69 |
| YVF2-160M-4 | 11 | 23.0 | 70 | 1460 | 2.0 | 2.8 | 0.0747 | 107 |
| YVF2-160L-4 | 15 | 30.6 | 95.5 | 1460 | 2.0 | 2.8 | 0.0918 | 128 |
| YVF2-180M-4 | 18.5 | 37.0 | 117.8 | 1470 | 2.0 | 2.8 | 0.139 | 163 |
| YVF2-180L-4 | 22 | 43.7 | 140.1 | 1470 | 2.0 | 2.8 | 0.158 | 184 |
| YVF2-200L-4 | 30 | 59.1 | 191 | 1470 | 2.0 | 2.8 | 0.263 | 233 |
| YVF2-225S-4 | 37 | 71.7 | 235.5 | 1475 | 2.0 | 2.8 | 0.406 | 284 |
| YVF2-225M-4 | 45 | 86.7 | 286.5 | 1475 | 2.0 | 2.8 | 0.469 | 308 |
| YVF2-250M-4 | 55 | 106 | 350.1 | 1480 | 2.0 | 2.8 | 0.66 | 404 |
| YVF2-280S-4 | 75 | 141 | 477.5 | 1480 | 1.7 | 2.8 | 1.12 | 530 |
| YVF2-280M-4 | 90 | 167 | 573 | 1480 | 1.7 | 2.8 | 1.46 | 690 |
| YVF2-315S-4 | 110 | 201 | 700.3 | 1480 | 1.7 | 2.8 | 3.11 | 855 |
| YVF2-315M-4 | 132 | 241 | 840.3 | 1480 | 1.7 | 2.8 | 3.62 | 1055 |
| YVF2-315L1-4 | 160 | 288 | 1018.6 | 1480 | 1.7 | 2.8 | 4.13 | 1040 |
| YVF2-315L2-4 | 200 | 359 | 1273.2 | 1480 | 1.7 | 2.8 | 4.94 | 1340 |
| YVF2-355M-4 | 250 | 449 | 1591.5 | 1490 | 1.7 | 2.8 | 7.62 | 1630 |
| YVF2-355L-4 | 315 | 566 | 2005.3 | 1490 | 1.7 | 2.8 | 7.71 | 1830 |
| YVF2-90S-6 | 0.75 | 2.26 | 7.2 | 910 | 1.9 | 2.8 | 0.0029 | 22 |
| YVF2-90L-6 | 1.1 | 3.18 | 10.5 | 910 | 1.9 | 2.8 | 0.0035 | 28 |
| YVF2-100L-6 | 1.5 | 4.21 | 14.3 | 920 | 1.9 | 2.8 | 0.0069 | 33 |
| YVF2-112M-6 | 2.2 | 5.97 | 21 | 935 | 1.9 | 2.8 | 0.0138 | 44 |
| YVF2-132S-6 | 3 | 7.94 | 28.6 | 960 | 1.9 | 2.8 | 0.0286 | 58 |
| YVF2-132M1-6 | 4 | 10.1 | 38.2 | 960 | 1.9 | 2.8 | 0.0357 | 73 |
| YVF2-132M2-6 | 5.5 | 13.4 | 52.5 | 960 | 1.9 | 2.8 | 0.0449 | 82 |
| YVF2-160M-6 | 7.5 | 17.2 | 71.6 | 970 | 1.9 | 2.8 | 0.0881 | 102 |
| YVF2-160L-6 | 11 | 24.5 | 105 | 970 | 1.9 | 2.8 | 0.116 | 128 |
| YVF2-180L-6 | 15 | 31.7 | 143.2 | 970 | 1.9 | 2.8 | 0.207 | 178 |
| YVF2-200L1-6 | 18.5 | 39.7 | 176.7 | 980 | 1.9 | 2.8 | 0.315 | 224 |
| YVF2-200L2-6 | 22 | 46.3 | 210.1 | 980 | 1.9 | 2.8 | 0.36 | 231 |
| YVF2-225M-6 | 30 | 61.6 | 286.5 | 980 | 1.9 | 2.8 | 0.547 | 300 |
| YVF2-250M-6 | 37 | 74.6 | 353.3 | 980 | 1.9 | 2.8 | 0.834 | 365 |
| YVF2-280S-6 | 45 | 88.0 | 429.7 | 980 | 1.9 | 2.8 | 1.39 | 464 |
| YVF2-280M-6 | 55 | 106 | 525.2 | 980 | 1.9 | 2.8 | 1.65 | 530 |
| YVF2-315S-6 | 75 | 147 | 716.2 | 985 | 1.6 | 2.8 | 4.11 | 855 |
| YVF2-315M-6 | 90 | 173 | 859.4 | 985 | 1.6 | 2.8 | 4.78 | 910 |
| YVF2-315L1-6 | 110 | 211 | 1050.4 | 985 | 1.6 | 2.8 | 5.45 | 955 |
| YVF2-315L2-6 | 132 | 249 | 1260.5 | 985 | 1.6 | 2.8 | 6.12 | 1055 |
| YVF2-355M1-6 | 160 | 301 | 1527.9 | 990 | 1.6 | 2.8 | 7.83 | 1555 |
| YVF2-355M2-6 | 200 | 376 | 1909.9 | 990 | 1.6 | 2.8 | 7.9 | 1715 |
| YVF2-355L-6 | 250 | 470 | 2387.3 | 990 | 1.6 | 2.8 | 8.2 | 1830 |
| YVF2-132S-8 | 2.2 | 6.07 | 28.1 | 705 | 1.8 | 2.8 | 0.0314 | 66 |
| YVF2-132M-8 | 3 | 7.81 | 38.2 | 705 | 1.8 | 2.8 | 0.0395 | 76 |
| YVF2-160M1-8 | 4 | 10.2 | 51 | 720 | 1.8 | 2.8 | 0.0753 | 100 |
| YVF2-160M2-8 | 5.5 | 13.5 | 70 | 720 | 1.8 | 2.8 | 0.0931 | 110 |
| YVF2-160L-8 | 7.5 | 17.8 | 95 | 720 | 1.8 | 2.8 | 0.126 | 128 |
| YVF2-180L-8 | 11 | 25.3 | 140 | 730 | 1.8 | 2.8 | 0.203 | 185 |
| YVF2-200L-8 | 15 | 34.1 | 191 | 730 | 1.8 | 2.8 | 0.339 | 230 |
| YVF2-225S-8 | 18.5 | 41.7 | 236 | 730 | 1.8 | 2.8 | 0.491 | 258 |
| YVF2-225M-8 | 22 | 48.1 | 280 | 730 | 1.8 | 2.8 | 0.547 | 368 |
| YVF2-250M-8 | 30 | 64.3 | 382 | 735 | 1.8 | 2.8 | 0.834 | 420 |
| YVF2-280S-8 | 37 | 78.8 | 471 | 735 | 1.7 | 2.8 | 1.39 | 485 |
| YVF2-280M-8 | 45 | 95.4 | 572 | 735 | 1.7 | 2.8 | 1.65 | 530 |
| YVF2-315S-8 | 55 | 113 | 700 | 735 | 1.7 | 2.8 | 4.79 | 835 |
| YVF2-315M-8 | 75 | 154 | 955 | 735 | 1.7 | 2.8 | 5.58 | 955 |
| YVF2-315L1-8 | 90 | 181 | 1146 | 735 | 1.7 | 2.8 | 6.37 | 1055 |
| YVF2-315L2-8 | 110 | 221 | 1401 | 735 | 1.7 | 2.8 | 7.23 | 1230 |
| YVF2-355M1-8 | 132 | 264 | 1681 | 740 | 1.7 | 2.8 | 8.4 | 1575 |
| YVF2-355M2-8 | 160 | 317 | 2037 | 740 | 1.7 | 2.8 | 8.6 | 1660 |
| YVF2-355L-8 | 200 | 392 | 2546 | 740 | 1.7 | 2.8 | 8.8 | 1755 |
| 注：重量为吊装时的参考重量，以实物为准。 | ||||||||
